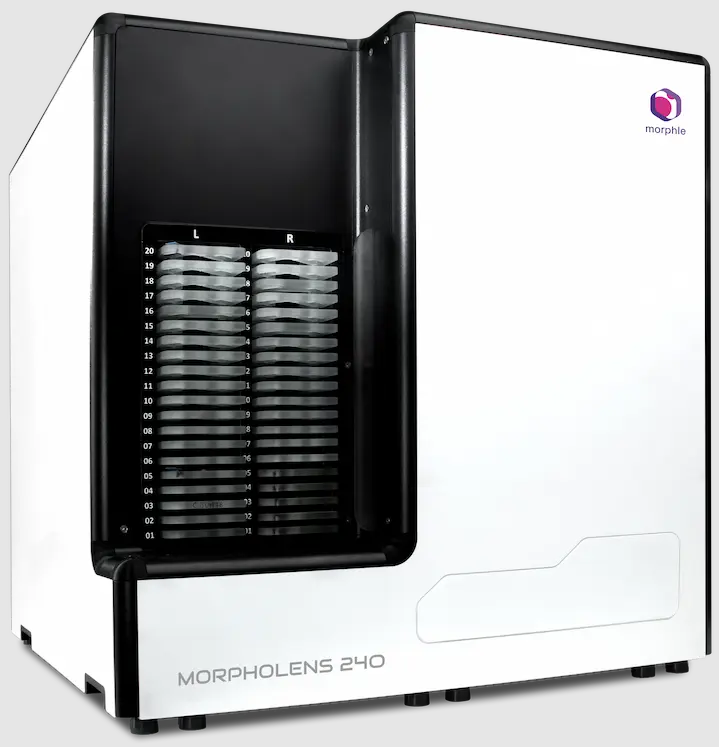

Introducing MorphoLens 240 from Morphle
Built for enterprise-scale labs, the MorphoLens 240 offers industrial-level throughput for high-volume histopathology and cancer diagnostics labs.
Key Applications:
Discover demo and features
Key Benefits
Specifications
| Slide Rack | – 240 slide batch at once – 40 carriers with 6 slides per carrier – Supports continuous loading |
| Slide Types | – Slides with / without / non-dried coverslips – Slide thickness from 0.8 to 2mm – Slide shapes 1”x3”, 2”x3” & 3”x3” |
| Time for 15x15mm | – 90 secs with flash mode with 3 focus points – 150 to 250 secs with dense focus map & AI repair – 7.5 mins with 7 Z-Stacks 1 um apart – 15 secs fast preview with live mode |
| Optics & Camera | – 0.22 microns / pixel @ 40x with primary camera – Secondary Preview Camera for macro imaging – High power flash LED with custom condenser |
| Barcode Support | All types supported including – Linear type, example: CODE 39, CODE 128 – Matrix, example : QR code, PDF417 |
| LIMS Integration | Custom development for bi-directional integration is included as part of installation |
| Data Size | 450 MBs in lossless archive mode and 850 MBs within hot storage for a WSI of 15x15mm. For Z-stack data size, it gets multiplied by a factor of the number of stacks |
| Image Storage | 2000-3000 scans are stored in a primary hard disk and auto-rolled out to Local / Cloud archival based on retention time for hot storage. Local: RAID 6 NAS-based chained storage Cloud: Cold storage on Amazon Web Services @ 10 cents per slide per year |
| Intended Use for | 1. HE & IHC stained tissue sections 2. Pap smears 3. FNAC cytology smears |
| Scanner Size | W x D x H (inches) 31 x 28 x 30 |
| Weight | 100 Kg (220 lb) |
